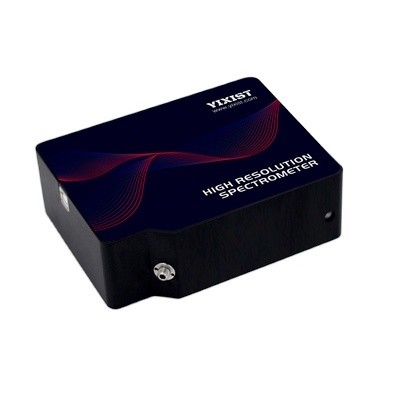

High Resolution Spectrometer YIXIST YSM-8102-06 HAM S13496 200-1100nm Wavelength Range Spectrum Analyzer

Name: High Resolution Spectrometer YIXIST YSM810206 HAM S13496 2001100nm Wavelength Range Spectrum Analyzer
Brand: YIXIST
Price: 3 USD

Quality High Resolution Spectrometer YIXIST YSM-8102-06 HAM S13496 200-1100nm Wavelength Range Spectrum Analyzer for sale

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8102-06

Size : 140mm x 110mm x 46mm

Weight : 0.7 Kg, 0.7Kg

Wavelength Range : 200nm - 1100nm

Model : YSM-8102-06

Dimension : 140mm * 110mm * 46mm

Optical resolution : Determined by the grating and slit

Fiber connector : SMA905

Detector : Hamamatsu S13496 Line array CMOS

Pixel : 4096 pixels Pixel size 7um*200um

Signal to noise ratio : 600:1 at full signal

Dynamic range (Single) : 10000:1

Price : $3,687.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

High Resolution Spectrometer YIXIST YSM-8102-06 HAM S13496 200-1100nm Wavelength Range Spectrum Analyzer

PRODUCT OVERVIEW

YSM-8102-06 series high-resolution spectrometers adopt Hamamatsu 4096-pixel S13496 CMOS detector, whose pixel resolution has increased by one time compared with an S11639 detector. It vastly improves the accuracy of spectrometers and is ideal for LIBS and other laser spectral measurements.

Feature

Up to 4096 pixels resolution. Cross-symmetric C-T optical structure. Filters eliminate secondary and advanced diffractions . Customizable wavelength range and optical resolution. USB2.0 data transfer and power supply. Support USB2.0, RS232, RS485. Support OEM and in-depth customization.

Application

Laser central wavelength, FWHM and stability measurement
LIBS multi-channel monitoring

MODEL LIST

PRODUCT SPECIFICATIONS

Model	YSM-8102-06
Detector	Hamamatsu S13496 Line array CMOS 4096 pixels Pixel size 7µm×200µm Wavelength response range 200nm-1100nm
Dimension	140mm×110mm×46mm
Wavelength Range	Determined by the grating
Optical Resolution	Determined by the grating and slit
A/D	16bit
Integration Time	0.5ms-65s
Dynamic Range	10000:1
Signal to noise ratio	600:1 at full signal
Linearity	>99%
Trigger Mode	Software, Hardware, Synchronous
Power Consumption	5VDC，300mA
Fiber Connector	SMA905
Operating Temperature	5℃-35℃ (recommended temperature 25℃)
Communication Interface	USB2.0, RS232
Operating System	Win XP, Win 7, Win 8, Win10
Power Supply	USB

TYPICAL TESTING

RELATED ACCESSORIES

Fiber

Light Source

Sample Holder
